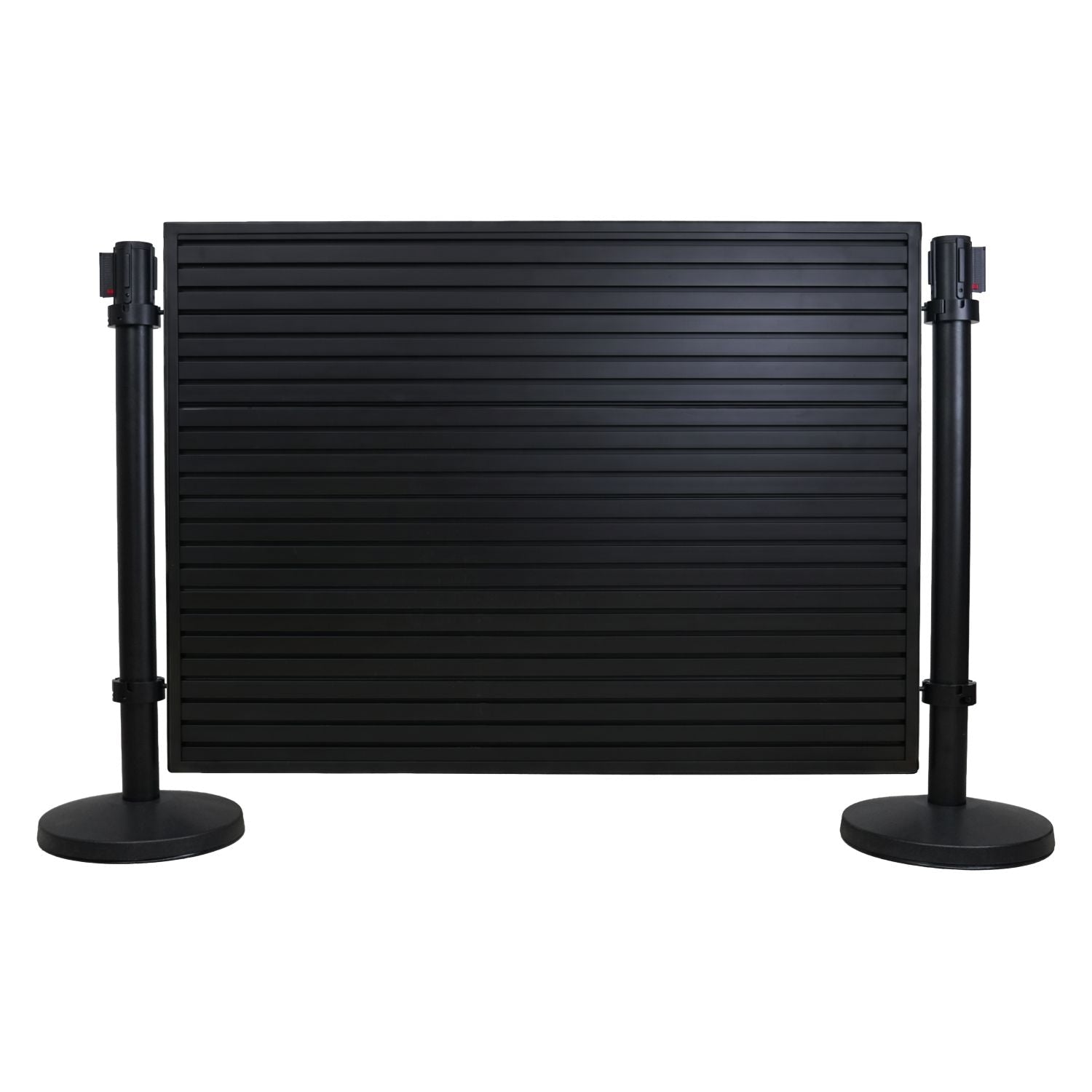

Simply position your stanchions, secure the collars with an allen key, and attach the panel. This starter kit includes a black aluminum slatwall panel, 2 stanchion posts, and 4 collars - giving you a complete single-bay queue display ready to install straight out of the box.
Once installed, the standard slatwall groove spacing lets you mix and match hooks, shelves, sign frames, and display bowls to build a display tailored to your product mix - and reconfigure it anytime your promotions change.

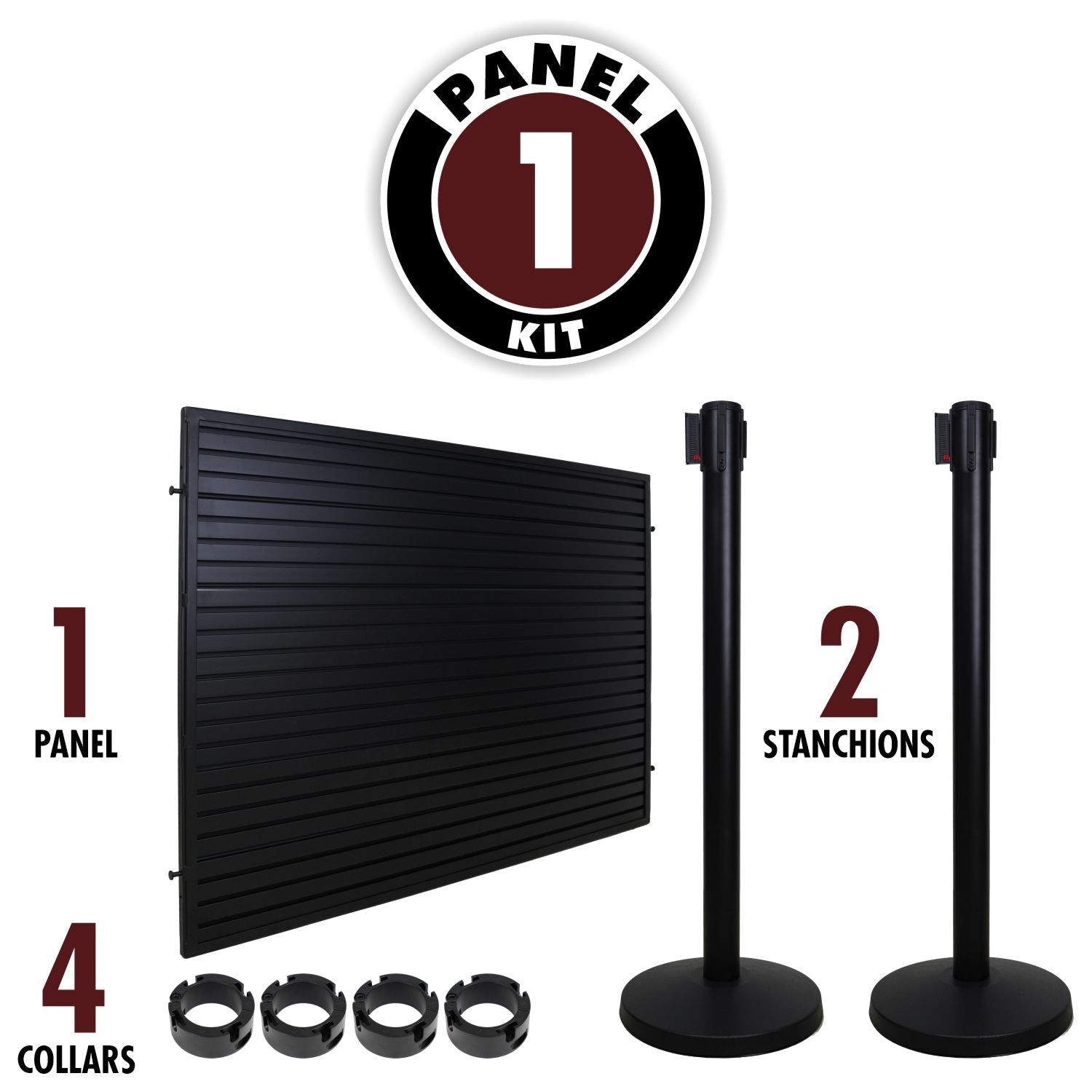

What's Included:
• (1) Double-sided black aluminum slatwall merchandising panel
• (2) Stanchion posts with 13 ft retractable belts
• (4) Collars - compatible with 2.5" diameter posts (2 per post)
What You'll Need:
• Allen key for collar installation
Compatible Accessories:
• Hooks, shelves, sign frames, and display bowls
Ideal For: Convenience stores, grocery stores, pharmacies, quick service restaurants, pop-up retail, retail chains, museums, airports, and banks.
Specification Sheet
What is included in the slatwall merchandising starter kit?
The kit includes one double-sided black aluminum slatwall panel, two black stanchion posts with 13-foot (13′) retractable belts, and four collars sized for 2.5-inch (2.5″) diameter posts. An allen key is required for installation and is not included.
Does the starter kit include hooks, shelves, or a sign frame?
No, the kit contains no merchandising accessories at all. It supplies the panel and the hardware that holds it up, and nothing for product to hang on. Hooks, shelves, wire baskets, sign frames, and display bowls are sold separately. The 1-panel bundle is the version that arrives with 3 shelves, 50 hooks, a sign frame, and a display bowl already in the box.
Should I order the starter kit or the 1-panel bundle?
Order the starter kit when hooks and shelves are already held in stock, or when the merchandising mix is not settled yet. Order the 1-panel bundle when the display has to be filled on the day it lands, since it adds 3 shelves, 50 six inch hooks, a sign frame, and a display bowl to the same panel, posts, and collars.
Do the stanchion posts in the kit have retractable belts?
Yes, each of the two posts includes a 13-foot (13′) black retractable belt, so the posts that carry the panel also direct or close the lane. Each post weighs 25 pounds.
What are the panel dimensions and weight?
The panel measures 50 inches (50″) wide by 36 inches high and weighs 38 pounds. Each of the two stanchion posts weighs 25 pounds.
How much lane length does the starter kit occupy?
The assembled kit occupies roughly 4.5 feet (4.5′) of lane, being the 50-inch (50″) panel between its two posts. That is the figure to check when working out whether a bay fits between a register and an end cap. Confirm against the install drawing before finalizing a floor plan.
Is the panel double-sided?
Yes, the panel is grooved on both faces, which gives one kit two merchandising faces: one into the queue lane and one toward the sales floor. Accessories are counted per face, so a two-sided layout needs two sets of hooks and shelves.
What accessories can be added to the kit later?
The kit takes any standard slatwall fixture in the grooves, including hooks in 4-inch (4″), 6-inch, 8-inch, and 10-inch lengths, shelves in 22 x 11-inch and 49 x 11-inch sizes, and chrome wire baskets. Signage is the exception, since sign frames and display bowls mount on the post tops instead of in the grooves.
Can the starter kit be expanded into a longer run?
Yes, the kit is the first bay of a run that can keep growing. Each added bay needs one more panel, one more stanchion post, and two more collars, because adjacent panels share the center post. The counts follow stanchions = panels + 1 and collars = stanchions x 2. Bundles are also sold in 1 through 4 panel configurations.
What tools are needed to assemble the starter kit?
An allen key, which is not included. The collars clamp to the posts and the panel edges seat into the collars.
Will the kit work with stanchion posts already in the lane?
The kit ships with its own two posts, so existing posts are not needed. To add a panel to posts already in service, the panel-only or panel-with-collars listing is the fit, provided those posts measure 2.5 inches (2.5″) in diameter.
How quickly does the starter kit ship?
Estimated processing time is about 2 days for in-stock kits, plus transit time based on destination. Call (877) 885-1600 before committing to an install date on a multi-location rollout.
