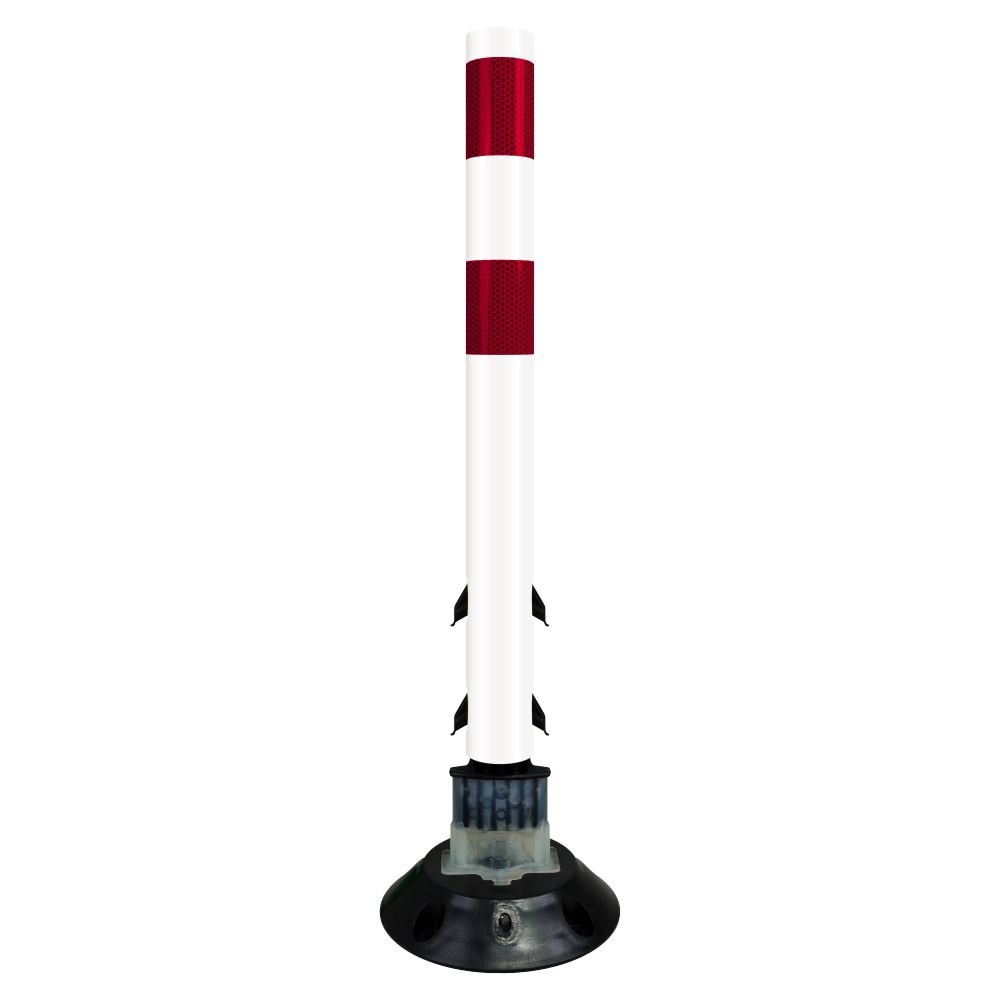

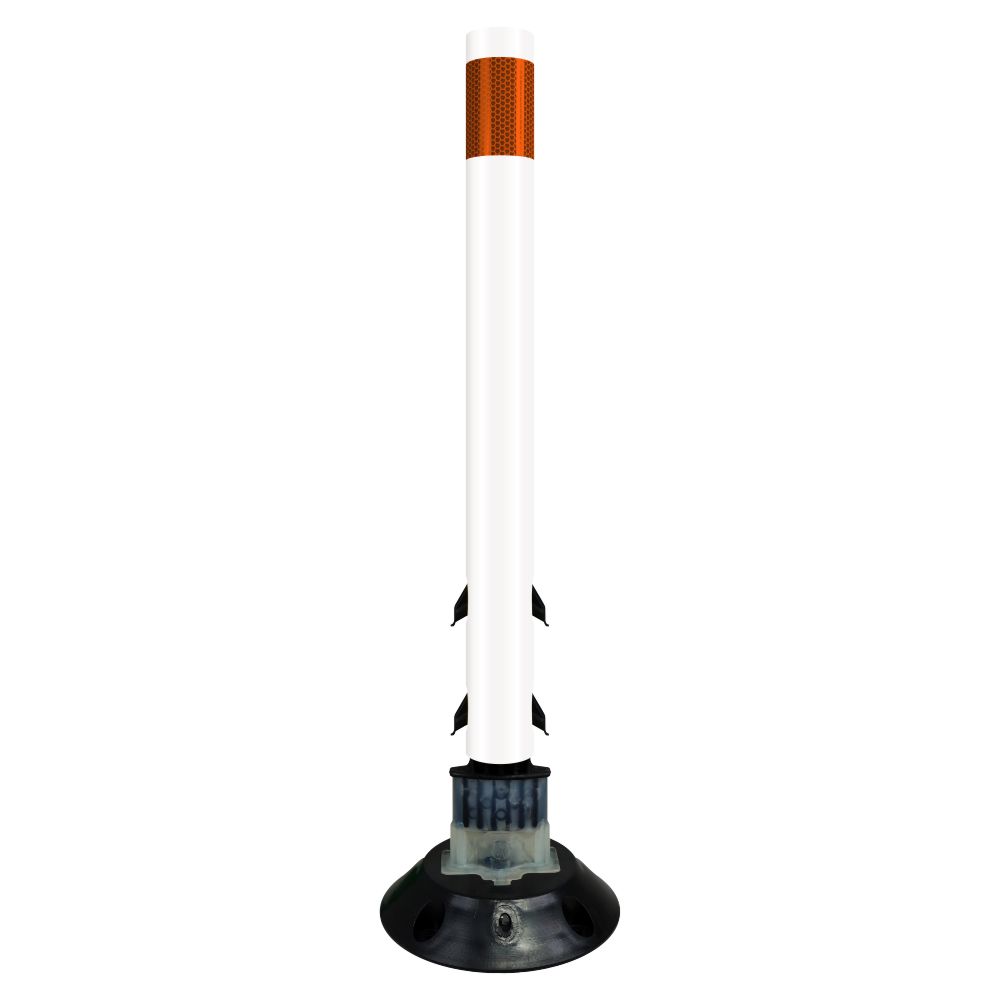

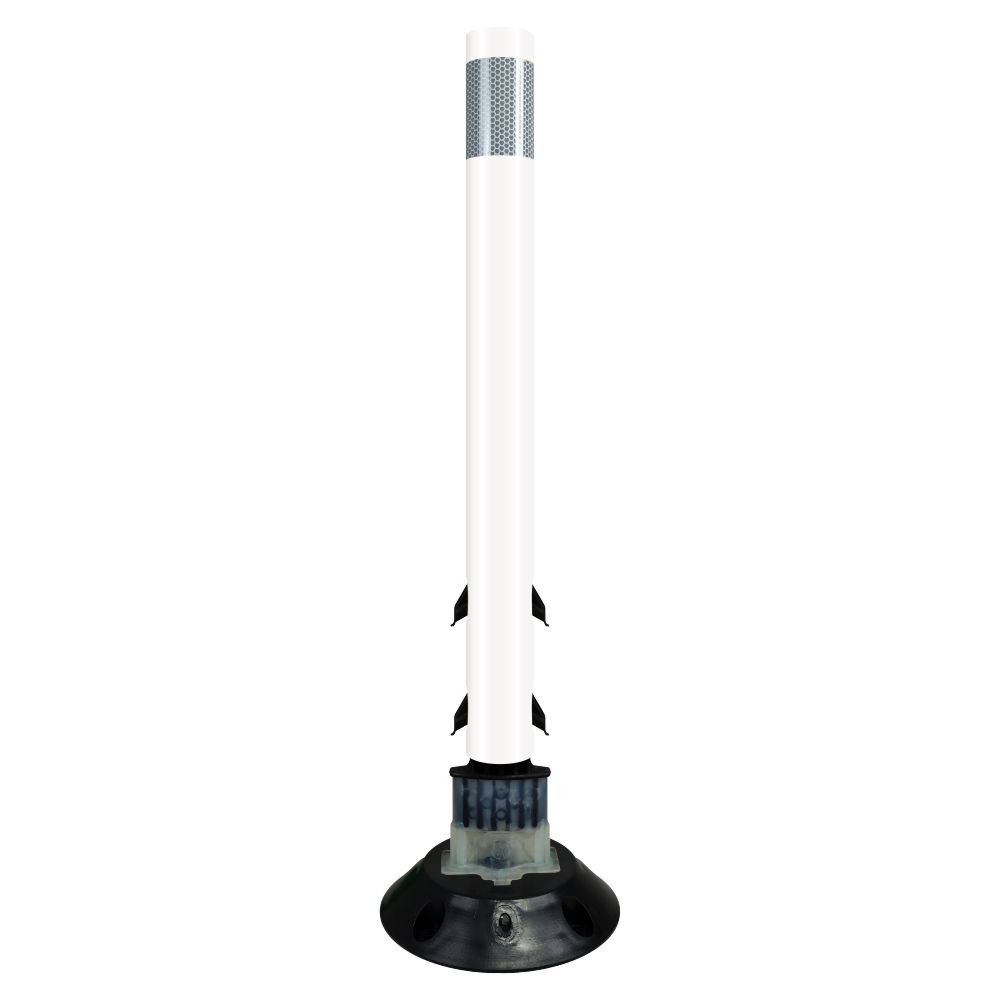

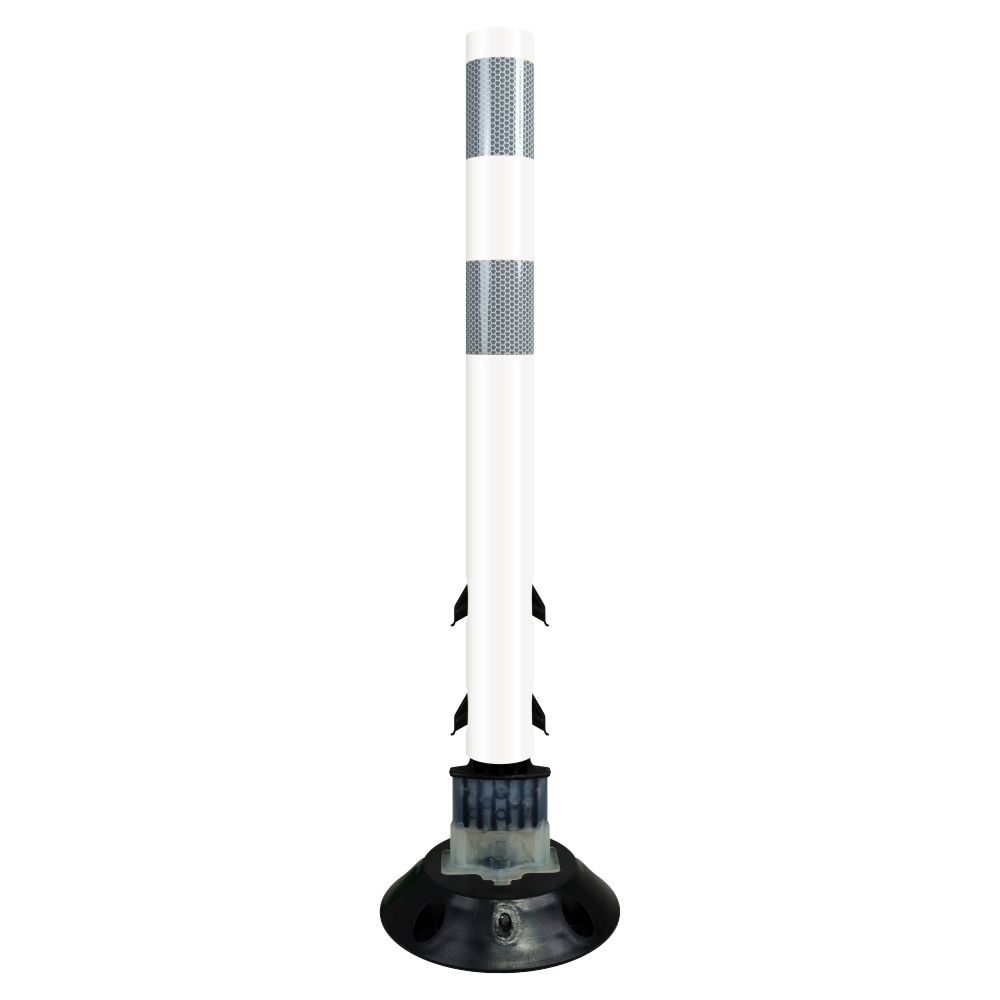

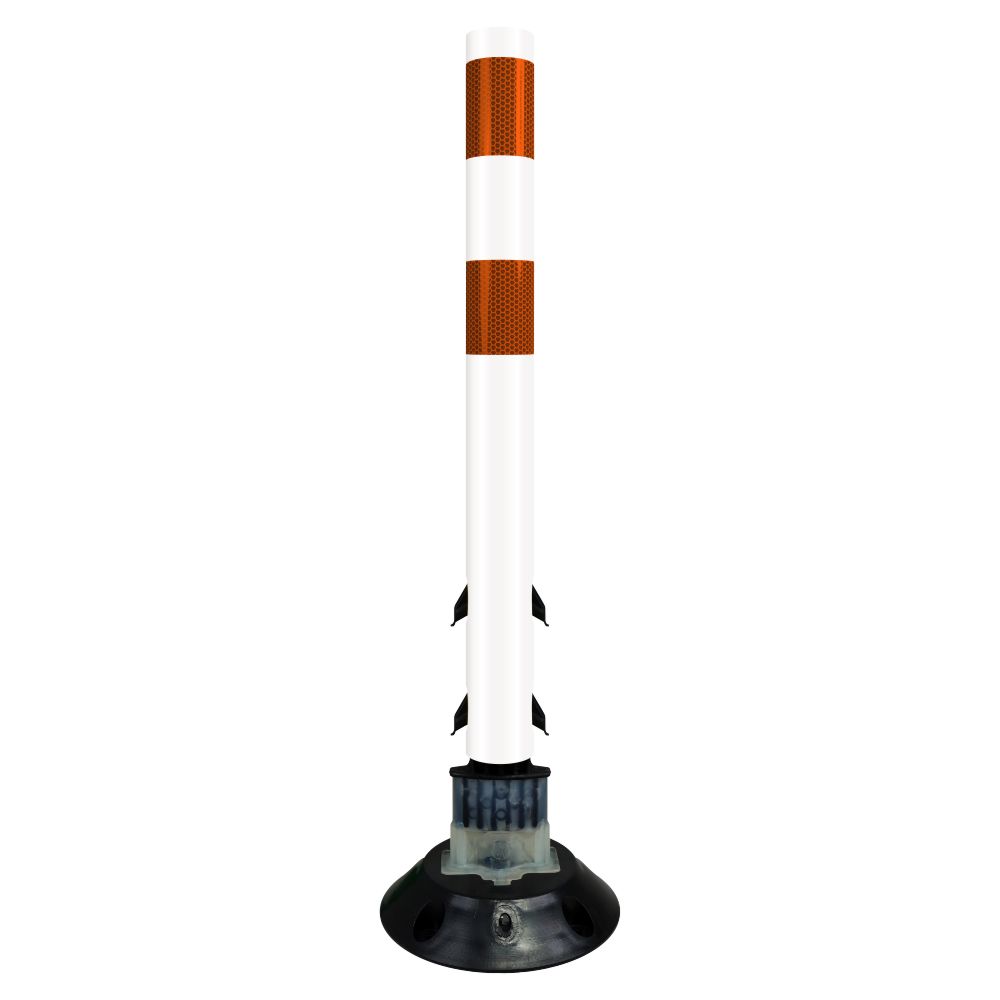

FlexStake 750 Series Surface Mount Center Line Round Base Traffic Delineator - White Tubular Post with Reflective Sheeting Options

The FlexStake 750 Series Traffic Delineator provides a durable and highly visible solution for traffic control and safety applications. This white, impact-resistant tubular post offers versatility with multiple height options and reflective sheeting configurations. Designed for easy installation and reliable performance, it’s ideal for use in roadways, parking lots, and construction zones.

Includes:
FlexStake 750 Series Surface Mount Center Line Round Base Traffic Delineator - White Tubular Post with Reflective Sheeting Options

Features:

• MULTIPLE HEIGHT OPTIONS: Available in six post heights: 19", 24", 30", 36", 42", and 48", to meet specific needs.
• TOUGH AND DURABLE: Constructed with an impact-resistant white tubular post for long-lasting use.
• REFLECTIVE VISIBILITY OPTIONS: Offers reflective sheeting in single or double strips for enhanced visibility. Colors include orange, red, white, and yellow. Also available with no sheeting for minimalistic applications.
• EASY SURFACE MOUNTING: Features a centerline round base for quick, secure installation on asphalt or concrete surfaces.
• MULTI-PURPOSE USAGE: Designed to withstand various conditions in traffic, construction, and safety zones.

Bolted Base Installation Instructions:

Recommended Hardware:
Use 1/4" to 3/4" Red Head anchors, wedge anchors, or Tapcon screws.

Installation Steps:

1. Position the Base:
   Place the Flexstake base in the desired location and mark the hole pattern on the surface.
2. Drill Holes:
   Using a suitable masonry bit, drill four holes in the asphalt or concrete according to the marked pattern.
3. Clean Holes:
   Remove all dust and debris from the holes using compressed air to ensure proper adhesion.
4. Prepare the Base:
   Insert the selected anchors or screws into the holes in the Flexstake base.
5. Apply Epoxy:
   Fill the drilled holes with a construction-grade epoxy suitable for concrete or asphalt surfaces.
6. Install the Base:
   Slowly press the Flexstake base, with the anchors inserted, into the epoxy-filled holes until fully seated.
7. Allow to Cure:
   Let the epoxy cure according to the manufacturer’s instructions before applying any load or impact to the stake.
